SIMAX 158 SM672(365W-380W)

Retail price
0.0
Market price
0.0
Product serial number
Quantity
-
+
Stock:
0
1
Product description
Parameters

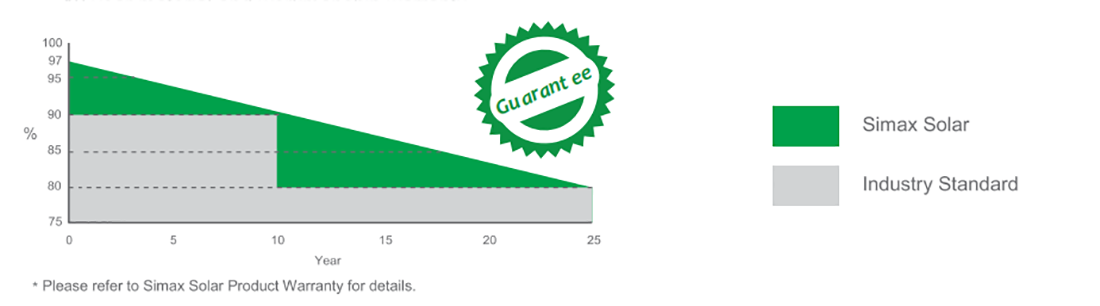

Leading Warranty in PV Industry

25 year transferrable power output warranty: 10 years I 90%,25 years 1 80%

Linear performance warranty from SIMAX Power

12 year material and workmanship warranty

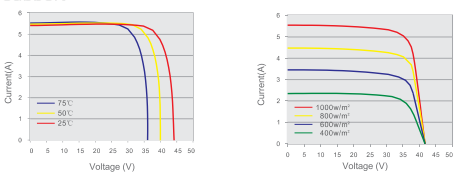

Electrical Characteristics

Parameters SM672-365 SM672-370 SM672-375 SM672-380
  STC NOCT STC NOCT STC NOCT STC NOCT
Peak power [Wp] Pmpp 365W 270.7W 370W 274.4W 375W 278.5W 390W 282.2W
Open circuit voltage [M] Voc 47.6 44.2 47.8 44.3 48.0 44.5 48.2 44.7
Maximum Power Voltage M] (V,mpp) 39.21 36.1 39.41 36.3 39.3 36.5 39.8 36.7
Maximum Power Current [A] (Impp) 9.31 7.50 9.39 7.56 9.47 7.63 9.55 7.69
Short circuit Current [A] (Isc) 9.89 8.00 9.97 8.06 10.05 8.12 10.13 8.19
Power Tolerance 0~+5w 0~+5w 0~+5w 0~+5w
Module Efficiency (%) 18.43% 18.69% 18.94% 19.19%

STC: Irradiance : 1000 W/m 2 ; Spectrum AM 1.5; Cell temperature: 25°C; Wind 0 m/s

NOCT: Iradiance: 800W/m2 i Spectrum AM 1.5; ambient temperature 20°C .wind speed 1 m/s

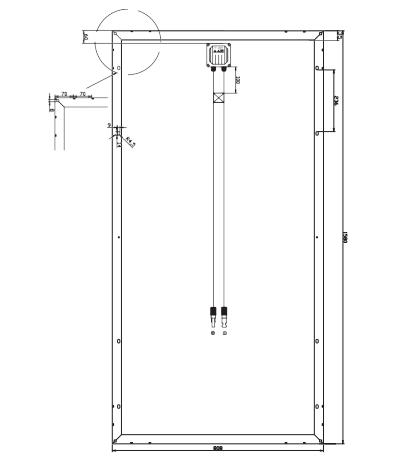

Mechanical Characteristics

Solar Cell Monocrystalline silicon 158.75x158.75 (mm)
No. of Cells 72(6×12)
Dimensions 1980x1000x35mm
Weight 22.5 kg
Front Glass 3.2mm (0.13 inches) tempered glass
Frame

Anodized aluminum alloy

Output

Cable Type ∅=4mm²
Lengths L=1200mm
Junction Box
MC4 IP67


Temperature Coefficients

Nominal Operating CellTemperature (NOCT) 45±2℃
Temperature Coefficient of (P,max)
0.42%/℃
Temperature Cofficient of (Voc) 0.32%/℃
Temperature Cofficient of (Isc) 0.04%/℃

◇ Provide the best solutions for photovoltaic power generation and technical support

◇ Provide Cost-effective products

◇ Provide 12 Years Quality Warranty

◇ Power out≥90% in 10 years

◇ Power out≥80% in 25 years
